FULL SERVO T SHAPE BABY DIAPER PRODUCTION LINE

Product video

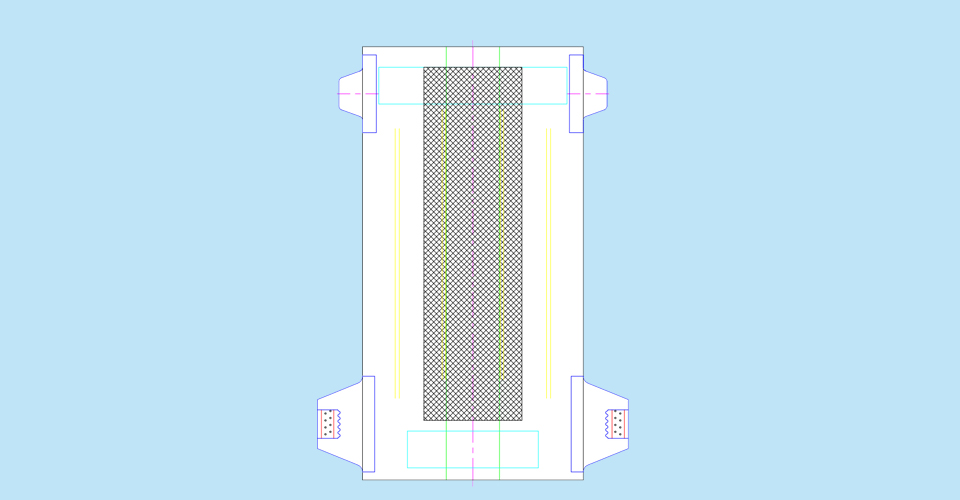

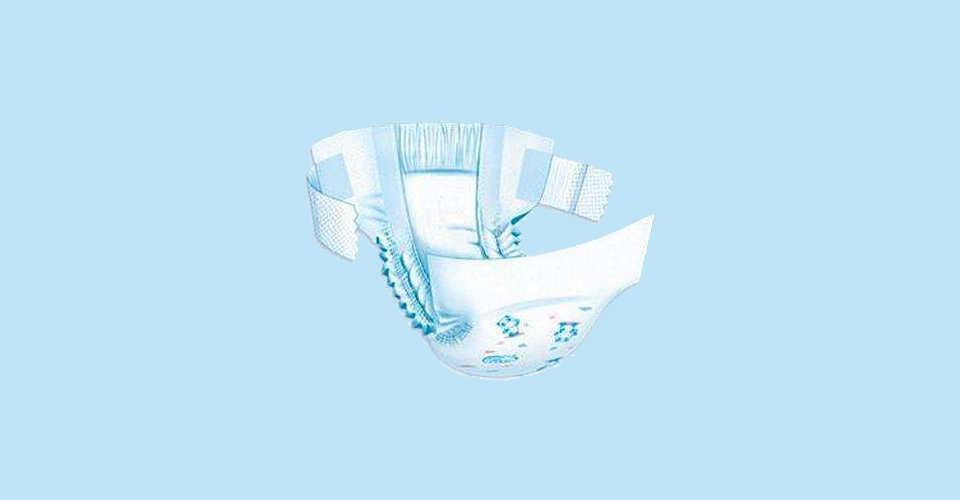

T SHAPE BABY DIAPER

Product profile:
This is an ordinary T shape baby diapers.
Product advantage: basically boundless material loss and low cost.
Applicable market: foreign country market.
Machine operation: the machine operation difficulty is low, the production station of baby diaper product is less, and this equipment has been very mature.

TECHNICAL PARAMETER

Design Speed 600Pcs/min
Stable Speed 400-50Pcs/min
Install Power 380V50HZ, Tri-phase
Power Supply 250KW
Product Size S, M, L, XL(Customized)
Qualified Rate ≥98%
Machine Size 30M*9.0M*4.5M
Weight 80Tons

TECHNOLOGY FEATURES

1. Full Servo or frequency converter auto-controlling system with high automation.
2. Touch screen for man-machine conversation, controlled by PLC.
3. Precision machine main parts by CNC.
4. Automatic web guiding control system.
5. Automatic raw materials tension control.
6. Automatic calculating and recording all production dates.
7. Automatic quality control system, automatic reject the defectives.
8. Under European CE standard designing passed the CE certificate.
9. Compact design, easy operation.

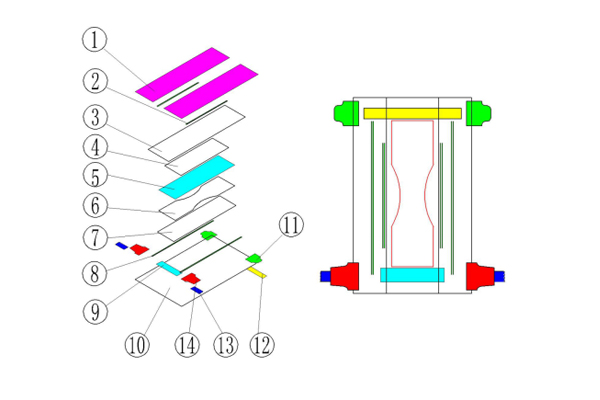

Raw material list


No Raw material No Raw material
1 Hydrophobic N.W. leakage protection 8 Leg rubber
2 Leakage protection rubber 9 Elastic waistband
3 Top sheet N.W. 10 Lamination film
4 ADL 11 Big ear
5 Tissue 12 Side tape
6 SAP+fluff pulp 13 Small ear
7 Down tissue 14 Frontal tape
