FULL SERVO ORDINARY BABY DIAPER PRODUCITON LINE

Product video

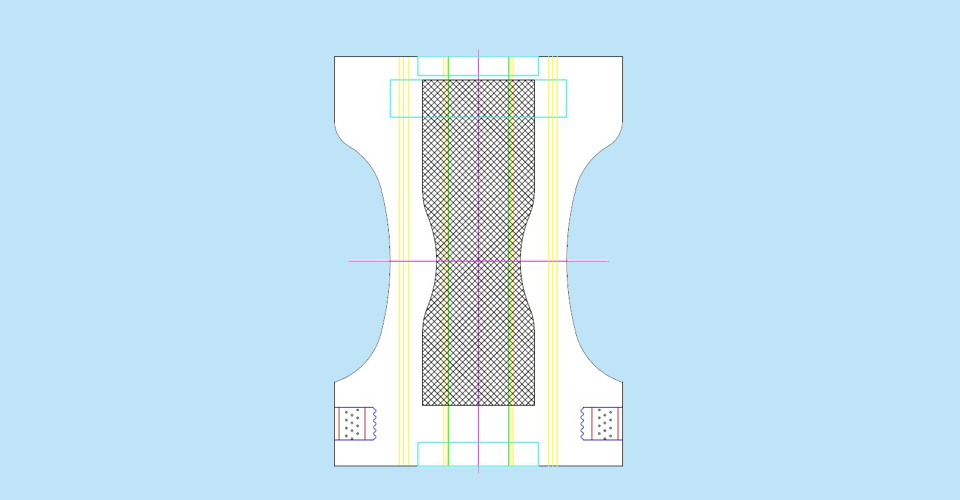

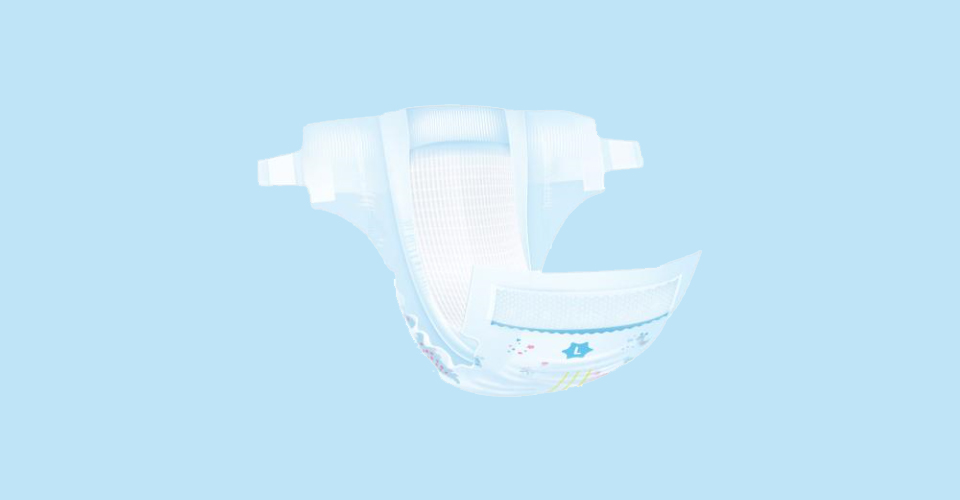

ORDINARY BABY DIAPER

Product profile:
This is an ordinary baby diapers.
Product advantage: low cost.
Applicable Market: domestic mainstream market and foreign country market.
Machine operation: the machine operation difficulty is low, the production station of baby diaper product is less, and this equipment has been very mature.

TECHNICAL PARAMETER

Design Speed 700Pcs/min
Stable Speed 500-600Pcs/min
Install Power 380V50HZ, Tri-phase
Power Supply 250KW
Product Size S, M, L, XL(Customized)
Qualified Rate ≥98%
Machine Size 35M*6.0M*3M
Weight 80Tons

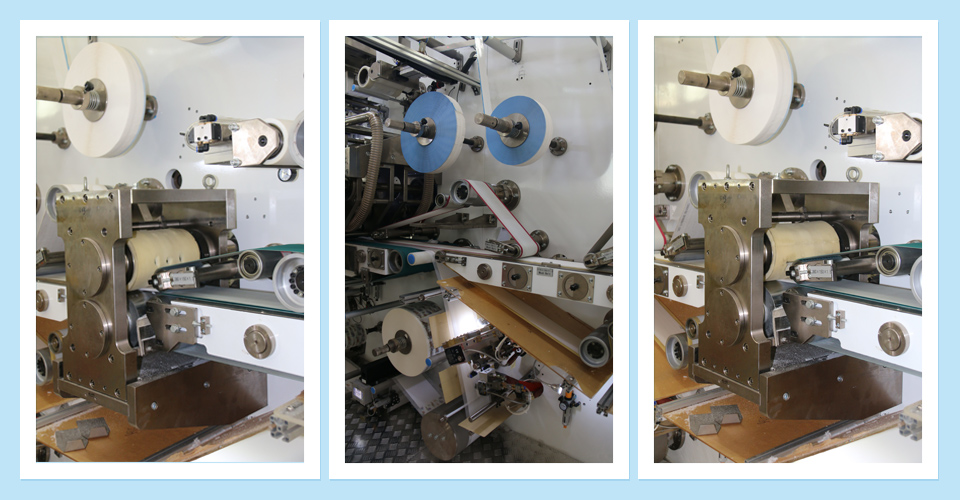

TECHNOLOGY FEATURES

1. Full Servo or frequency converter auto-controlling system with high automation.
2. Touch screen for man-machine conversation, controlled by PLC.
3. Precision machine main parts by CNC.
4. Automatic web guiding control system.
5. Automatic raw materials tension control.
6. Automatic calculating and recording all production dates.
7. Automatic quality control system, automatic reject the defectives.
8. Under European CE standard designing passed the CE certificate.
9. Compact design, easy operation.

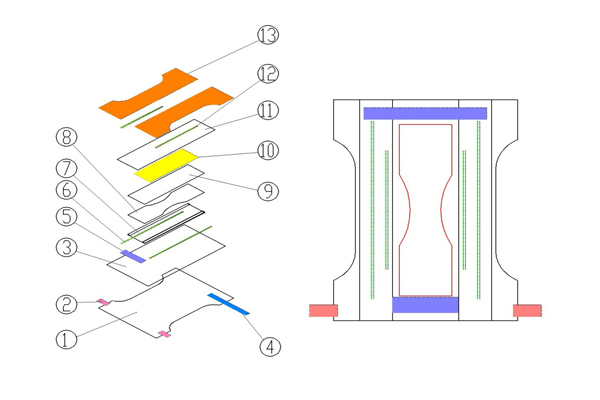

Raw material list


No Raw material No Raw material
1 Back sheet N.W. 8 SAP+fluff pulp
2 Side tape 9 Ttissue
3 Back sheet 10 ADL
4 Frontal tape 11 Top sheet N.W.
5 Elastic waistband 12 Leakage protection rubber
6 Leg rubber 13 Hydrophobic N.W. leakage protection
7 Down tissue
