MH-WSJ1200

FULL SERVO HIGH SPEED SANITARY NAPKIN PRODUCTION LINE

Product video

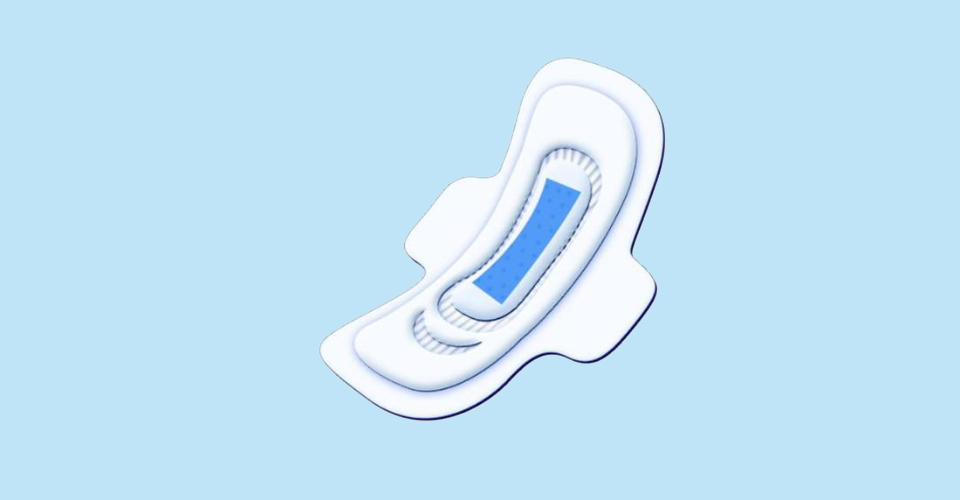

SANITARY NAPKIN

Product profile:

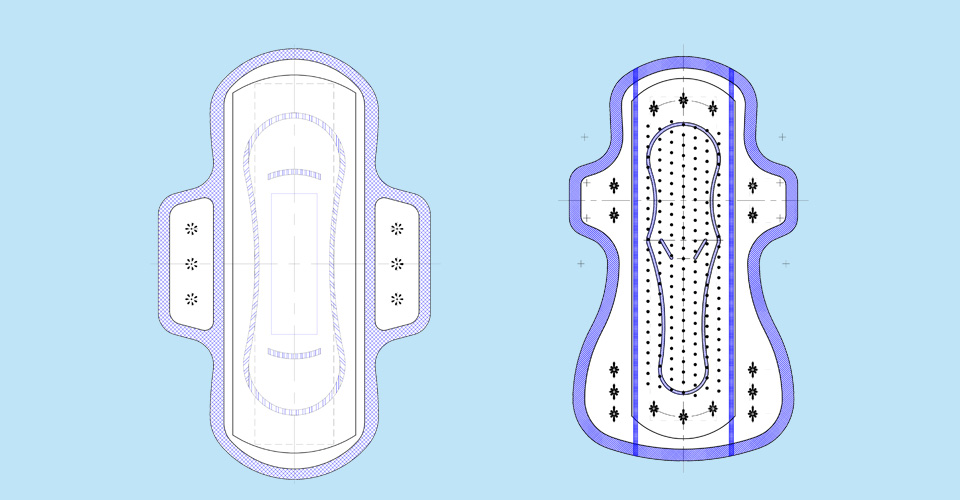

Specification of sanitary napkins in length is from 210mm to 420mm.
Product advantages: according to the product specifications of different markets, the life cycle of the product is long.
Applicable market: domestic market, foreign country market.
Machine operation: the machine operation difficulty is low, the production station of urine pants products is less, and this equipment has been very mature. According to different product requirements, the maximum production speed can be up to 1000 tablets per minute.

TECHNICAL PARAMETER

Design Speed 1200Pcs/min
Stable Speed 1000Pcs/min
Install Power 300KW
Power Supply 200KW
Product Size 240*160mm,280*160mm (Customized)
Qualified Rate ≥98%
Machine Size 40M*11M*4M(L*W*H)
Weight 60Tons

TECHNOLOGY FEATURES

1. Full Servo or frequency converter auto-controlling system with high automation.
2. Touch screen for man-machine conversation, controlled by PLC.
3. Precision machine main parts by CNC.
4. Automatic web guiding control system.
5. Automatic raw materials tension control.
6. Automatic calculating and recording all production dates.
7. Automatic quality control system, automatic reject the defectives.
8. Under European CE standard designing passed the CE certificate.
9. Compact design, easy operation.

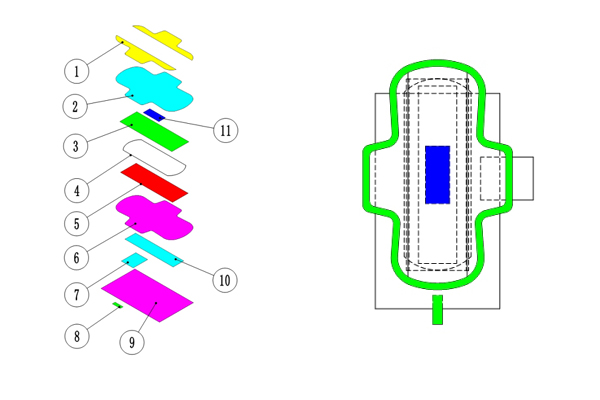

Raw material list


No Raw material No Raw material
1 Water repellent non-woven fabric 7 Wing release paper
2 Surface non-woven fabric 8 Easy to tear and paste
3 bibulous paper 9 Small capsule
4 Cotton core 10 Back release paper
5 toilet paper 11 Blue core
6 Bottom film non-woven fabric
